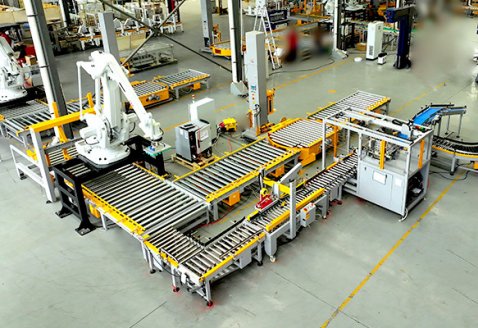

The carton case packing and palletizing line is a very typical line in the packaging industry. However, due to different case packing and palletizing methods, this line can be configured in various layouts. For carton-type products, the commonly used case packing methods are flip side-push packing and horizontal-motion packing. When the top flaps of the cartons are not completely sealed or fixed, the flip side-push packing method is required. The most notable feature of this method is that the machine automatically arranges the cartons into the required packing pattern. The rows, columns, and layers are pre-stacked before being pushed into the case in a single motion, effectively solving the problems of carton scattering and disordered packing.

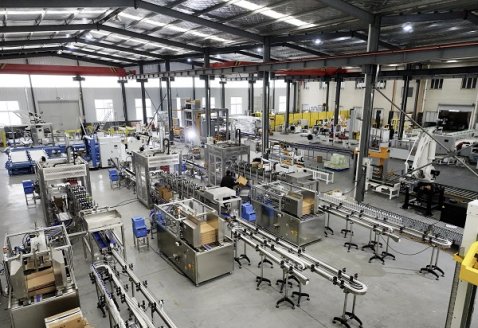

This line is specifically designed for the case packing and packaging of corrosive bottled chemical raw materials. The complete line consists of a high-speed hot melt adhesive case erector, a servo-driven horizontal-motion case packer, a hot melt adhesive case sealer, and conveyors. All equipment on the line is made of 304 stainless steel, offering excellent durability and corrosion resistance. With hot melt adhesive case erecting and sealing, the sealing result is strong and reliable. The horizontal-motion case packer features a dual-gripper design, allowing two cases to be packed simultaneously, achieving a speed of 12 to 15 cases per minute.

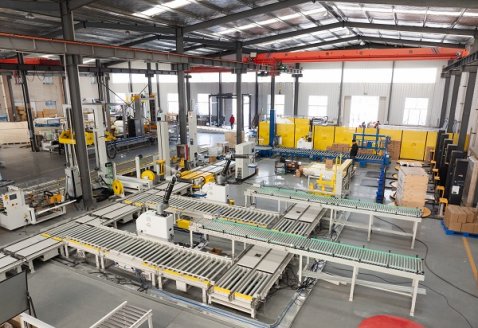

This line is specifically designed for automatic palletizing of daily chemical products such as detergents. Taking into consideration the customer's required throughput and available floor space, the line adopts a configuration where two palletizing lines share one pallet dispenser. Additionally, the empty pallet conveyor and the case infeed line are designed in a double-layer configuration, which not only reduces costs but also minimizes the equipment footprint.

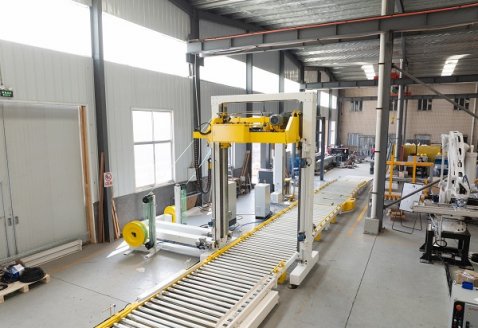

The corrugated board strapping and wrapping line is an automated packaging line specifically designed for the corrugated board industry. In view of the bulky yet relatively uniform specifications of corrugated board, this line is equipped with a compressive through-type strapping machine, which applies pressure to the corrugated board before strapping. This results in tighter strapping and reduces logistics and transportation volume. Furthermore, due to the high efficiency requirements and relatively uniform specifications of the corrugated board industry, Aixun has equipped the line with a dual through-type strapping mechanism, allowing two straps to be applied simultaneously, thereby doubling the strapping efficiency.

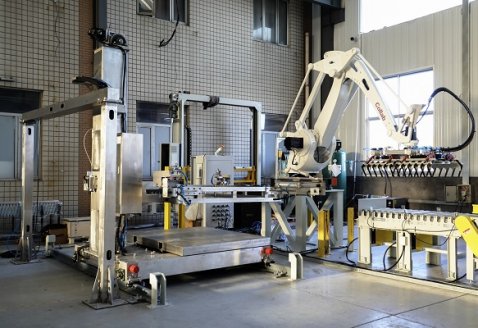

The FIBC bag opening mechanism is frequently used in the bag palletizing process. It facilitates transportation and helps prevent bags from tipping over. FIBC bag opening machines are available in both fully automatic and semi-automatic versions. Regardless of whether it is semi-automatic or fully automatic, an RGV (Rail Guided Vehicle) is always equipped at the bottom to transport the palletized products away and to position new bags for hanging.

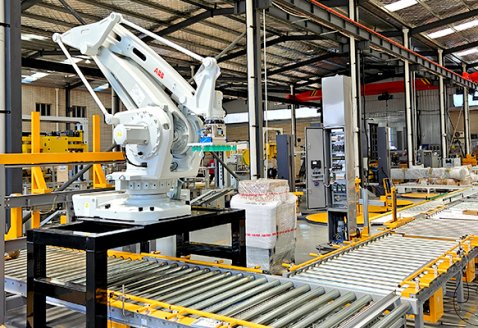

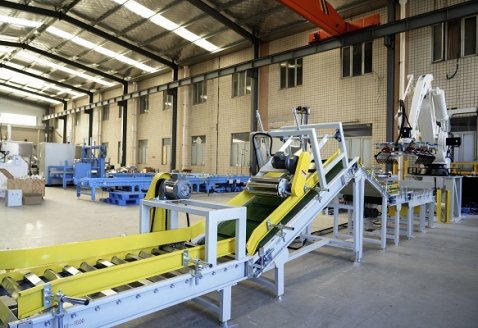

The essential components of a bag palletizing and packaging line include a bag flattening/tilting mechanism, a turning mechanism, a vibration leveling unit, a bag pressing device, and a picking/gripping unit. However, due to certain space constraints at the user's site combined with a strong demand for high speed, the engineers at Aixun fully utilized their creativity during the manufacturing process. They replaced the originally planned straight conveyor with a non-powered sloped conveyor, which not only solved the space issue but also maintained the required efficiency

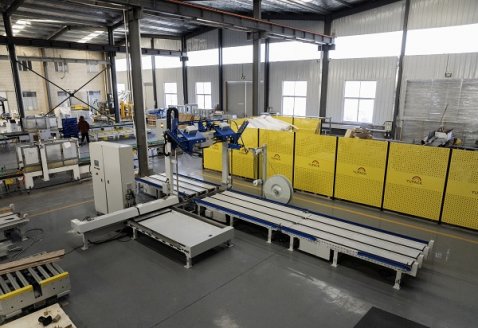

As the name suggests, the crosstie pallet strapping machine is a fully automatic pallet strapping machine capable of automatically placing crossties (sleepers). This machine mainly consists of a crosstie magazine, an automatic feeding mechanism, a fully automatic pallet strapping machine, and a pallet conveyor. It can perform online strapping of products without pallets, such as plywood, gypsum boards, lumber, steel materials, and various types of pipes/tubes.

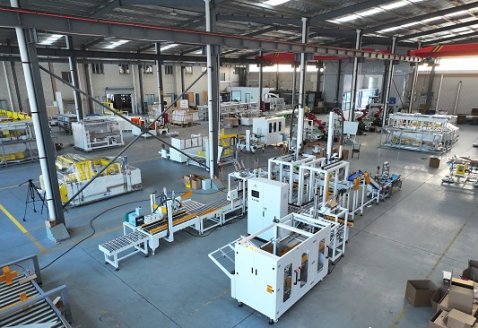

The corn seed packaging line is a typical automated packaging line. This line consists of a hot melt adhesive case erector, an automatic case packer, a hot melt adhesive case sealer, a checkweigher with reject mechanism, a labeling machine, and powered conveyors. Additionally, according to customer requirements, an automatic pad/slip sheet placing station has been added at the case packing position, making the entire packaging process smarter and smoother.

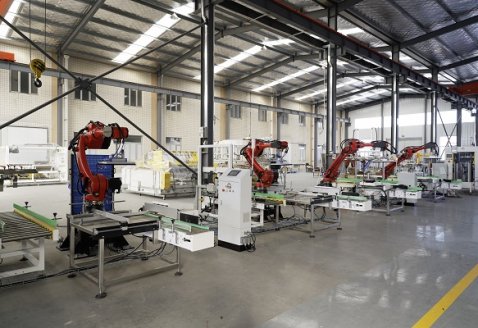

The robotic case packer utilizes an industrial robot combined with a case opening mechanism to complete the product case packing process. The most notable feature of this machine is its ability to pack relatively heavy products. The products are arranged into the required pattern by a dedicated product aligning mechanism. The case opening mechanism is responsible for opening all four top flaps of the carton, while the robot loads the arranged products into the carton.
