What functions can be optionally selected for pallet wrapping machines

30 Jun.2025

1. Ramp

Application Scenarios: When manually handling pallets with hydraulic trucks or handcarts, the ramp reduces the height difference during transportation, enhancing operational safety.
Precautions:


  • The ramp slope must be compatible with pallet handling tools (e.g., hydraulic trucks), with a recommended slope ≤ 15°.

  • The width should match the diameter of the pallet wrapping machine's turntable.

  • The ramp material should be anti-slip and wear-resistant (e.g., checkered steel plate) and fixed to the wrapping machine's base to prevent displacement.

2. Electric Top Press / Pneumatic Top Press

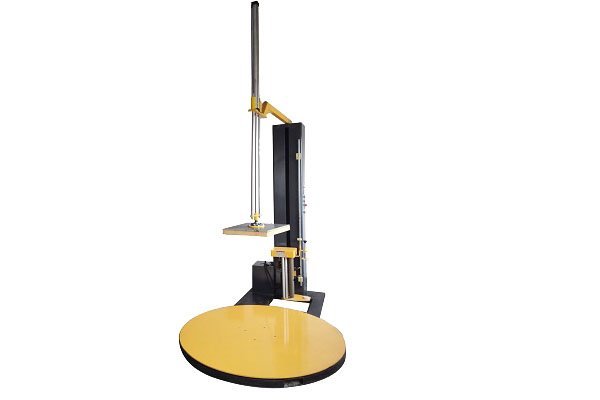

Application Scenarios: After placing the pallet, the top press device automatically presses down to secure the goods, preventing shaking or scattering during wrapping.
Precautions:


  • Pneumatic top presses require an air cylinder, which has a stroke limitation and increases the overall height of the pallet wrapping machine.

  • Electric top presses do not increase the overall height.

  • The top press size and shape are customizable (square/round).

3. Weighing Function

Application Scenarios: Optional when automatic detection of pallet cargo weight is needed, equipped with a weight display.
Precautions: The weighing function increases the height of the wrapping machine's turntable. If the height increase causes an excessive angle, a ramp cannot be installed.

4. Explosion-Proof Model

Application Scenarios: Suitable for high-risk environments such as chemical and oil-gas industries. Motors and electrical components use explosion-proof certified materials.
Precautions: Explosion-proof wrapping machines require customized explosion-proof configurations, leading to longer production cycles. It is recommended to customize and stock them as soon as possible based on needs to avoid work delays due to prolonged lead times.
